平板式粗效空气过滤器重庆市初效过滤网、
湖南长沙初效过滤网、湖南长沙初效尼龙网过滤器

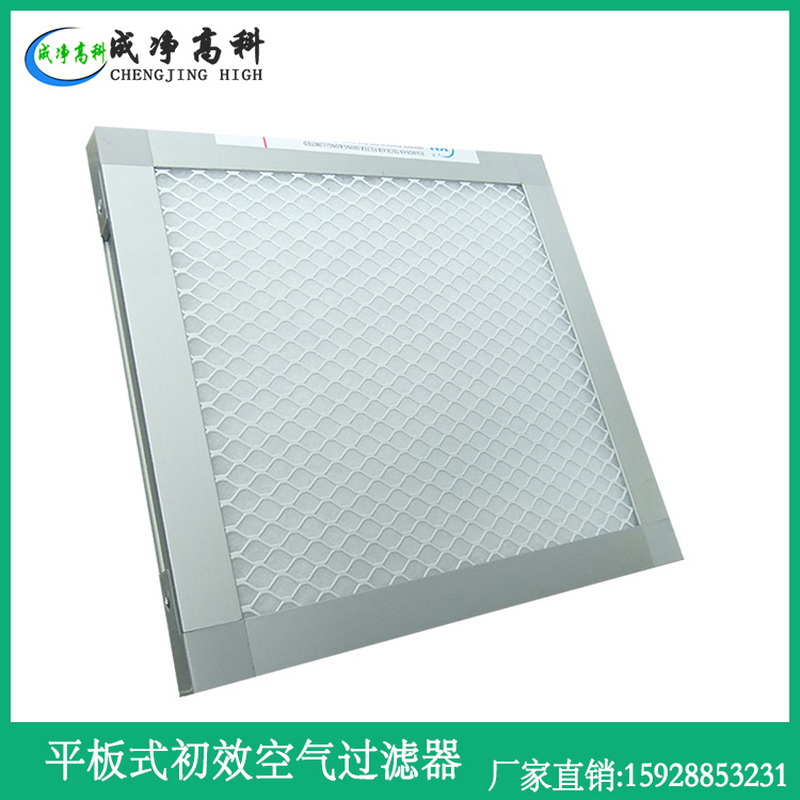

Flat type coarse efficiency of air filters
特点 Features
●价格便宜，厚度薄
●阻力小、风量大宁夏银川初效尼龙网过滤器、宁夏银川初效回风过滤网
●适用于空调系统的初级过滤
●Price cheap price, adopts thin thickness
●Responding to small resistance, air
●Applicable to air conditioning system adopts the primary filtration
型号尺寸及其他参数
Standard specification
型号
model
|
外形尺寸
Outside Dimensions
|
额定风量
Rated air flow
|
初阻力
Initial resistance
|
效率（级别）
Efficiency(class)
|
滤料型号
Model of filter media
|
CJ-S8-1
|
295×295×10/20mm
12″×12″×1/2″/1″
|
800m3/h
|
25Pa
|
40%
(计重法)
weight
|
G1
G2
|
初效过滤棉
Early effect filter cotton
|
CJ-S8-2
|
495×295×10/20mm
20″×12″×1/2″/1″
|
1300m3/h
|
CJ-S8-3
|
495×495×10/20mm
20″×20″×1/2″/1″
|
2200m3/h
|
CJ-S8-4
|
595×295×10/20mm
24″×12″×1/2″/1″
|
1600m3/h
|
CJ-S8-5
|
595×495×10/20mm
24″×20″×1/2″/1″
|
2700m3/h
|
CJ-S8-6
|
595×595×10/20mm
24″×24″×1/2″/1″
|
3200m3/h
|
*可要据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filters
