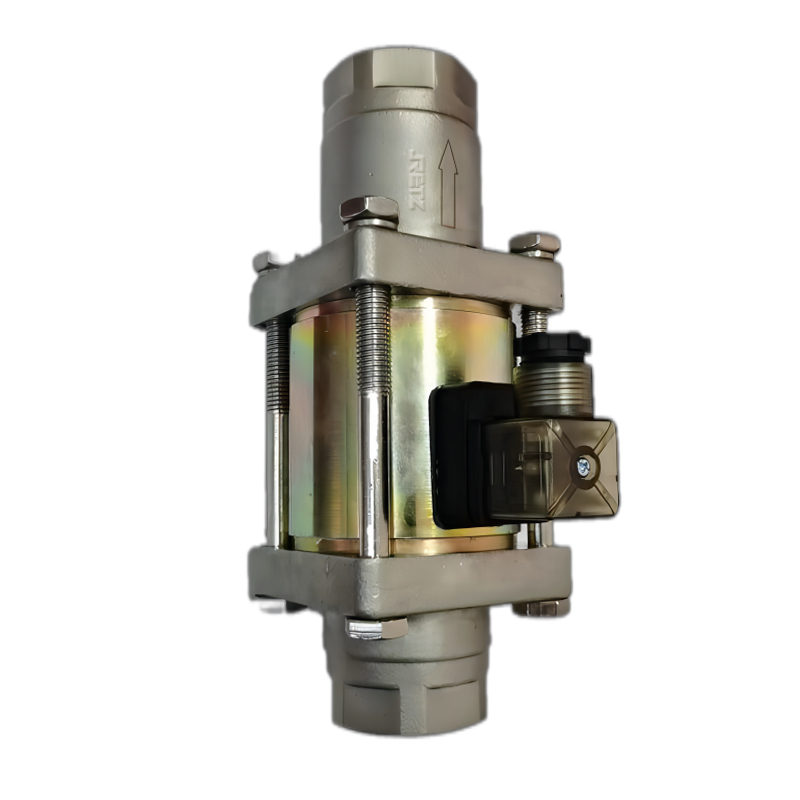

品牌：RETZ瑞茨/我们一直致力于流体控制领域的持续创新，始于2005……进口高频率电磁阀 是一种快速开关的电磁阀，其通过电磁线圈组件通电后，使电磁线圈组件与静铁芯形成电磁铁而形成电磁力，动铁芯的电磁力的作用下向上运动从而与阀口处脱离而使电磁阀打开，由于静铁芯与动铁芯之间设置有隔磁片，避免了静铁芯与动铁芯之间的直接接触，从而保证动铁芯高频率运动的灵敏性和准确性另外，动铁芯的下端嵌置有密封垫，保证了阀口处的密封性；阀口的上表面为一斜面，使动铁芯的下端与阀口的接触为线接触
High
frequency electromagnetic valve is a type of fast switching electromagnetic
valve. After being energized by the electromagnetic coil component, the
electromagnetic coil component forms an electromagnet with the static iron
core, forming an electromagnetic force. The electromagnetic force of the moving
iron core moves upward and separates from the valve port, causing the
electromagnetic valve to open. Due to the setting of a magnetic separator
between the static iron core and the moving iron core, direct contact between
the static iron core and the moving iron core is avoided, To ensure the
sensitivity and accuracy of high-frequency movement of the moving iron core, in
addition, a sealing gasket is embedded at the lower end of the moving iron
core, ensuring the sealing at the valve port; The upper surface of the valve
port is an inclined plane, making the contact between the lower end of the
moving iron core and the valve port a line contact
高频率电磁阀为直动式活塞结构,用于频繁快速启闭的场合RETZ The
high-frequency electromagnetic valve is a direct acting piston structure, used
for frequent and fast opening and closing situations
进口高频率电磁阀工作原理--
常闭（断电关闭）
当通电时，电磁力将阀座打开，
当断电时，弹簧力将阀座关闭
控制类型：电磁直动式
进口高频率电磁阀规格尺寸--
连接形式：螺纹、法兰连接
压力范围：0-25Bar
尺寸范围：1/4"-4"
适用介质：中性，腐蚀性液体和气体
介质粘度：最大50
cst(mm2/s)
介质温度：-20℃ —
+130 ℃
环境温度：-30℃ —
+60 ℃
阀门材质：CF8
密封材质：FPM
控制电源：DC24~127V；AC36~380V
防护等级：IP65
泄露等级：DIN EN
12266 A级
