Q46F-16

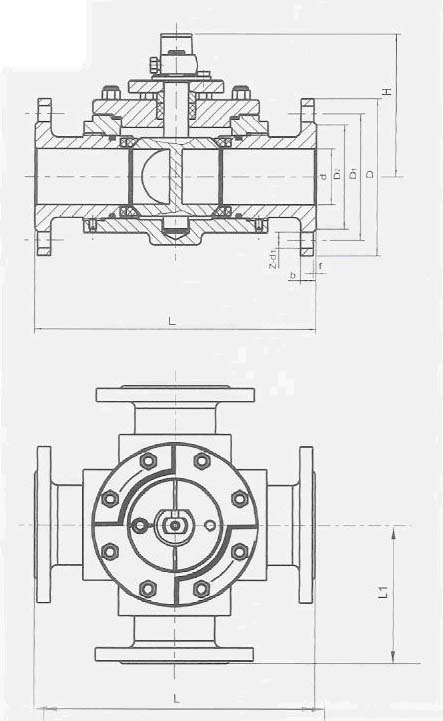

主要外型尺寸和连接尺寸 单位：毫米
Main overall﹠connecting dimensions Unit:mm
|
DN
|
d
|
L
|
D
|
D1
|
D2
|
b
|
f
|
Z-d1
|
H
|
W
|
|
25
|
25
|
180
|
115
|
85
|
65
|
14
|
2
|
4-14
|
100
|
180
|
|
32
|
32
|
218
|
135
|
100
|
78
|
16
|
2
|
4-18
|
108
|
180
|
|
40
|
38
|
240
|
145
|
110
|
85
|
16
|
3
|
4-18
|
133
|
230
|
|
50
|
50
|
260
|
160
|
125
|
100
|
16
|
3
|
4-18
|
147
|
230
|
|
65
|
64
|
280
|
180
|
145
|
120
|
18
|
3
|
4-18
|
170
|
400
|
|
80
|
76
|
310
|
195
|
160
|
135
|
20
|
3
|
8-18
|
177
|
400
|
|
100
|
100
|
395
|
215
|
180
|
155
|
20
|
3
|
8-18
|
255
|
650
|
|
125
|
125
|
432
|
245
|
210
|
185
|
22
|
3
|
8-18
|
325
|
650
|
|
150
|
150
|
490
|
280
|
240
|
210
|
24
|
3
|
8-23
|
266
|
-
|
法兰标准：JB/T79.1 Flange standard: JB/T79.1
亦可按客户要求制造 Flange also can be designed and manufactured according to Customer
Q46F-25
主要外型尺寸和连接尺寸 单位：毫米
Main overall﹠connecting dimensions Unit:mm
|
DN
|
d
|
L
|
D
|
D1
|
D2
|
b
|
f
|
Z-d1
|
H
|
W
|
|
25
|
25
|
180
|
115
|
85
|
65
|
16
|
2
|
4-14
|
100
|
130
|
|
32
|
32
|
218
|
135
|
100
|
78
|
18
|
2
|
4-18
|
108
|
180
|
|
40
|
38
|
240
|
145
|
110
|
85
|
18/
|
3
|
4-18
|
133
|
230
|
|
50
|
50
|
260
|
160
|
125
|
100
|
20
|
3
|
4-18
|
147
|
230
|
|
65
|
64
|
280
|
180
|
145
|
120
|
22
|
3
|
8-18
|
170
|
400
|
|
80
|
76
|
310
|
195
|
160
|
135
|
22
|
3
|
8-18
|
177
|
400
|
|
100
|
100
|
395
|
230
|
190
|
160
|
24
|
3
|
8-23
|
255
|
650
|
|
125
|
125
|
432
|
270
|
220
|
188
|
28
|
3
|
8-25
|
325
|
650
|
|
150
|
150
|
490
|
300
|
250
|
218
|
30
|
3
|
8-25
|
266
|
-
|
法兰标准：JB/T79.1 Flange standard: JB/T79.1
亦可按客户要求制造 Flange also can be designed and manufactured according to Customer
|
