特点和用途

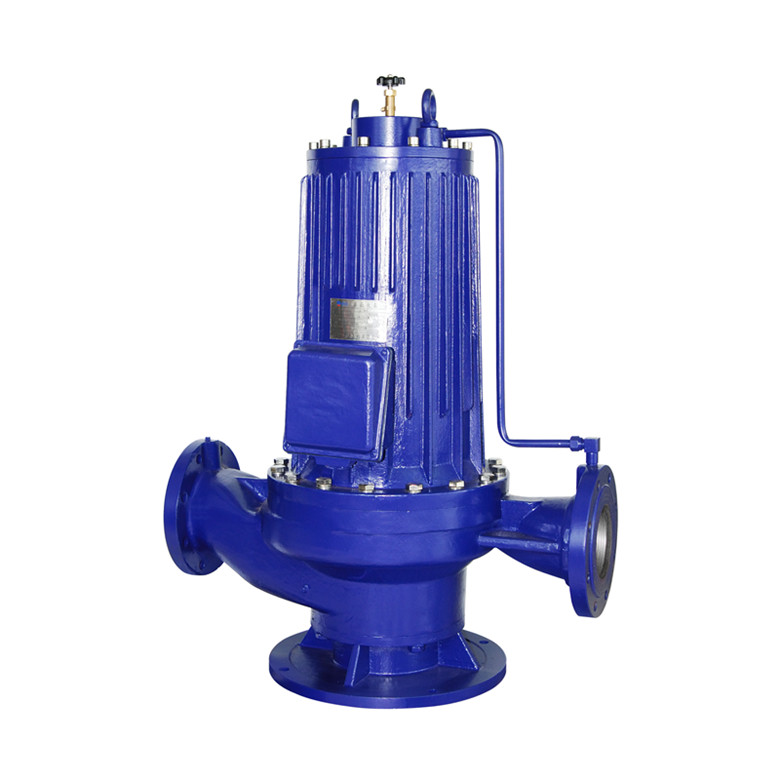

G系列低噪音管道屏蔽电泵采用全封闭、无机械密封的新型结构。定转子采用不锈钢套分别屏蔽密封，输送液体可进入电机内部冷却，从而解决了普通管道电泵因使用机械密封而导致输送介质泄漏、污染环境、运行可靠性差、维护困难等问题。转动部分则采用石磨轴承支承、输送介质润滑，是低噪音绿色环保型升级换代产品。由于其低噪音、无泄漏、运行可靠、免维护等优点深得用户信赖。
G系列屏蔽电泵主要用于暖通空调冷热水循环，工业、城市建筑给水，消防管道增压，远距离输水等场合。
工作条件
1、本系列流量范围：1-1080m3/h，杨程范围：5-105m。
2、电泵系统压力为1.0MPa（或1.6MPa），即泵吸入口压力+杨程《1.0MPa（或1.6MPa）。当用户要求系统压力高于1.0MPa时，须在订货时另行提出。
3、输送介质为清水或物理和化学性质类似于水的液体，介质温度《95°C（N型和NY型）或《150°C（GY型），用户选用GY型须另行配置外循环冷却水系统；当介质温度低于20°C时，须在订货时另行提出，本公司将采取特殊工艺措施。
型号
|
流量Q
(m3/h)
|
扬程H
(m)
|
电机功率
(kw)
|
型号
|
流量Q
(m3/h)
|
扬程H
（m）
|
|
|
G5-12NY
|
5
|
12
|
0.75
|
G100-50NY
|
100
|
50
|
25
|
G6.3-12.5NY
|
6.3
|
12.5
|
0.75
|
G125-40NY
|
125
|
40
|
25
|
G11-10NY
|
11
|
10
|
0.75
|
G150-40NY
|
150
|
40
|
25
|
G27-7NY
|
27
|
7
|
1.1
|
G100-50NY
|
100
|
50
|
25
|
G12.5-12.5NY
|
12.5
|
12.5
|
1.1
|
G160-40NY
|
160
|
40
|
30
|
G5-15NY
|
5
|
15
|
1.3
|
G200-32NY
|
200
|
32
|
30
|
G20-10NY
|
20
|
10
|
1.3
|
G315-20NY
|
315
|
20
|
30
|
G5.6-16NY
|
5.6
|
16
|
1.3
|
G400-20NY
|
400
|
20
|
30
|
G25-12.5NY
|
25
|
12.5
|
1.8
|
G125-50NY
|
125
|
50
|
37
|
G6.3-20NY
|
6.3
|
20
|
1.8
|
G160-46NY
|
160
|
46
|
37
|
G9-20NY
|
9
|
20
|
1.8
|
G200-40NY
|
200
|
40
|
37
|
G12.5-20NY
|
12.5
|
20
|
2.2
|
G240-32NY
|
240
|
32
|
37
|
G18-16NY
|
18
|
16
|
2.2
|
G250-32NY
|
250
|
32
|
37
|
G22-16NY
|
22
|
16
|
2.2
|
G200-50NY
|
200
|
50
|
45
|
G44-10NY
|
44
|
10
|
2.2
|
G240-40NY
|
240
|
40
|
45
|
G11.6-28NY
|
11.6
|
28
|
3-
|
G250-40NY
|
250
|
40
|
45
|
G20-20NY
|
20
|
20
|
3
|
G260-40NY
|
260
|
40
|
45
|
G25-20NY
|
25
|
20
|
3
|
G280-32NY
|
280
|
32
|
45
|
G50-12.5NY
|
50
|
12.5
|
3
|
G300--34NY
|
300
|
34
|
45
|
G12.5-32NY
|
12.5
|
32
|
4
|
G320-32NY
|
320
|
32
|
45
|
G50-20NY
|
50
|
20
|
5.5
|
G374-28NY
|
374
|
28
|
45
|
G75-17.5NY
|
75
|
17.5
|
7.5
|
G420-20NY
|
420
|
20
|
45
|
G80-20NY
|
80
|
20
|
7.5
|
G280-40NY
|
280
|
40
|
55
|
G40-32NY
|
40
|
32
|
9
|
G320-40NY
|
320
|
40
|
55
|
G45-30NY
|
45
|
30
|
9
|
G330-32NY
|
330
|
32
|
55
|
G50-32NY
|
50
|
32
|
9
|
G360-40NY
|
360
|
40
|
55
|
G60-32NY
|
60
|
32
|
9
|
G400-32NY
|
400
|
32
|
55
|
G100-20NY
|
100
|
20
|
9
|
G450-30NY
|
450
|
30
|
55
|
G75-27NY
|
75
|
27
|
11
|
G320-50NY
|
320
|
50
|
75
|
G100-27NY
|
100
|
27
|
11
|
G400-42NY
|
400
|
42
|
75
|
G80-32NY
|
80
|
32
|
13
|
G450-40NY
|
450
|
40
|
75
|
G125-20NY
|
125
|
20
|
13
|
G660-28NY
|
660
|
28
|
75
|
G50-55/2NY
|
50
|
55
|
15
|
G300-60NY
|
300
|
60
|
90
|
G100-32NY
|
100
|
32
|
15
|
G400-50NY
|
400
|
50
|
90
|
G80-40NY
|
80
|
40
|
18.5
|
G480-40NY
|
480
|
40
|
90
|
G140-24NY
|
140
|
24
|
18.5
|
G600-32NY
|
600
|
32
|
90
|
G140-30NY
|
140
|
30
|
18.5
|
G720-32NY
|
720
|
32
|
90
|
G200-20NY
|
200
|
20
|
18.5
|
G600-40NY
|
600
|
40
|
110
|
G100-40NY
|
100
|
40
|
22
|
G400-70NY
|
400
|
70
|
132
|
G125-32NY
|
125
|
32
|
22
|
G600-50NY
|
600
|
50
|
132
|
G160-32NY
|
160
|
32
|
22
|
G600-60NY
|
600
|
60
|
160
|
G180-28NY
|
180
|
28
|
22
|
G1080-32NY
|
1080
|
32
|
160
|
G290-18NY
|
290
|
18
|
22
|
G1080-35NY
|
1080
|
35
|
160
|
G358-16NY
|
358
|
16
|
22
|
G1080-40NY
|
1080
|
40
|
200
|
